TZM-series electro-hydraulic servo CNC hydraulic sheet metal bending machine

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Features

●Electro-hydraulic servo synchronous CNC bending machine, using electro-hydraulic servo valve double cylinder synchronous control, hydraulic convex automatic compensation system;

●The back gauge mechanism can control multiple back gauge shafts;

●The hydraulic system adopts an integrated control system, imported sealing ring, beautiful and simple appearance;

●The numerical control system adopts DELEM's DA52/DA56/DA66T numerical control system, Chinese menu graphic display; equipped with a quick clamping device for the upper die.



Technical parameter

Model Bending force
(kn)
Bending length(mm) Column spacing
(mm)
Opening height
(mm)
Throat depth
(mm)
Cylinder stroke
(mm)
TZM-100/2500 1000 2500 1700 560 350 200
TZM-100/3200 1000 3200 1900 560 350 200
TZM-100/4000 1000 4100 3200 560 350 200
TZM-130/2500 1300 2500 1900 560 350 200
TZM-130/3200 1300 3200 2600 560 350 200
TZM-130/4100 1300 4100 3200 560 350 200
TZM-170/2500 1700 2500 2600 560 350 200
TZM-170/3200 1700 3200 3200 560 350 200
TZM-170/4100 1700 4100 3000 560 350 200



Model Main motor power
(kw)
Hydraulic oil volume
(L)
Speed
(mm/s)
Dimensions
Drive in suppress Return L W H
TZM-100/2500 7.5 300 130 10 100 2800 1700 2550
TZM-100/3200 7.5 300 130 10 100 3500 1700 2550
TZM-100/4000 7.5 300 130 10 100 4400 1700 2550
TZM-130/2500 11 300 130 10 110 2850 1750 2580
TZM-130/3200 11 300 130 10 110 3550 1750 2580
TZM-130/4100 11 300 130 10 110 4450 1750 2580
TZM-170/2500 15 300 110 10 100 2900 1780 2600
TZM-170/3200 15 300 110 10 100 3600 1800 2600
TZM-170/4100 15 300 110 10 100 4500 1800 2600

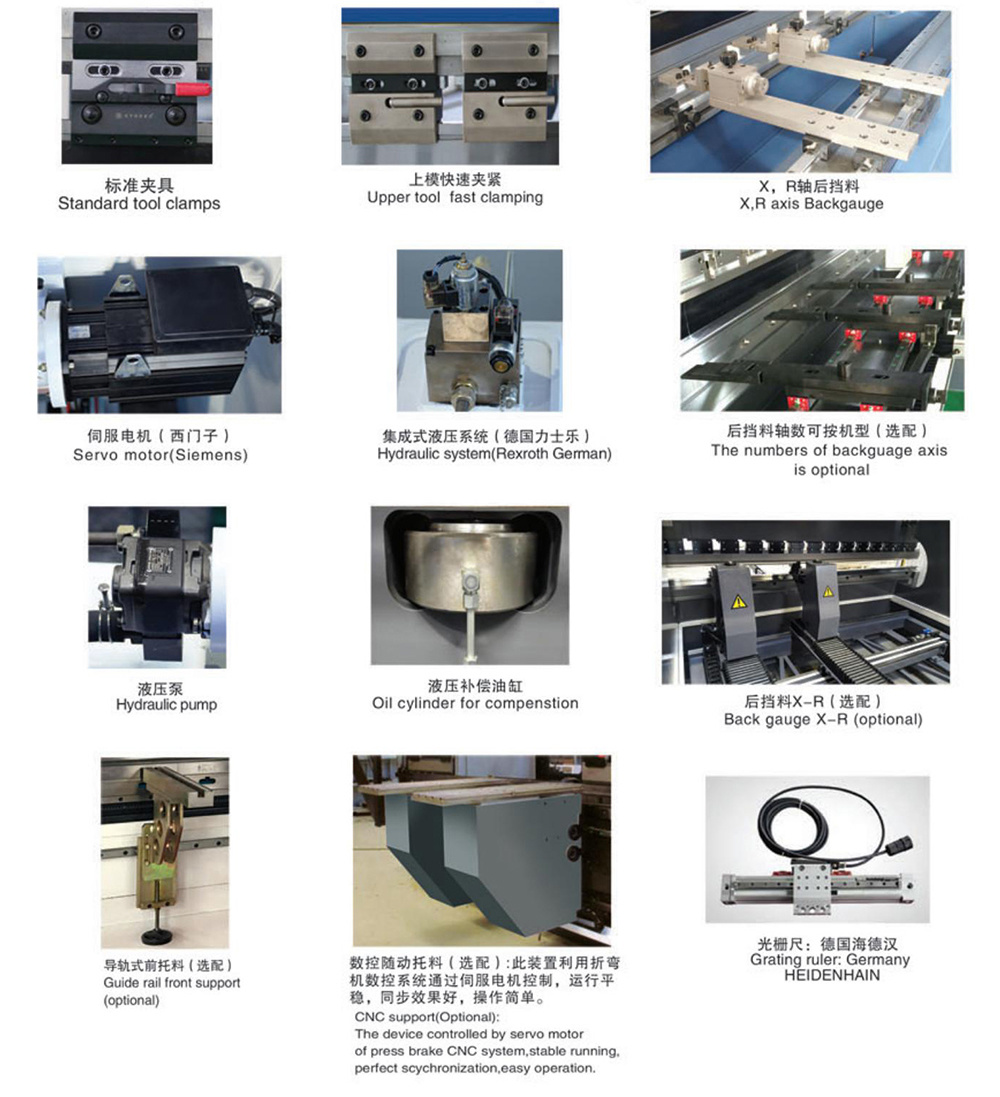

TZM series-standard and optional system of CNC bending machine:
