Three cylinder-CNC bending machine

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Features:

has the functions of fast forward, work advance and fast return;



Working principle:

Quick approach and quick return work through the middle cylinder. When working, the hydraulic oil enters the three cylinders and pressurizes the workpiece at the same time to ensure the pressure balance. When the three cylinders are working, correct the flattening problem of the central part of the ordinary bending machine. The machine adopts the rigid structure of mechanical synchronous shaft for balance of up and down movement, simple structure and convenient maintenance.

This machine can solve the problem of large central angle by adjusting the pressure and holding time according to different plate thickness.



Product parameters

Specification model Nominal pressure Working table length Distance between columns Throat depth Slider stroke Maximum opening height main motor power

kn

mm

mm

mm

mm

mm

kw

WC67Y-63/2500 630 2500 2000 250 100 370 5.5
WC67Y-63/3200 630 3200 2500 250 100 370 5.5
WC67Y-80/3200 800 3200 2500 250 120 380 5.5
WC67Y-100/3200 1000 3200 2500 320 120 400 5.5
WC67Y-100/4000 1000 4000 3000 320 120 400 7.5
WC67Y-125/3200 1250 3200 2500 320 120 400 7.5
WC67Y-125/4000 1250 4000 3000 320 120 400 7.5
WC67Y-160/3200 1600 3200 2500 320 180 450 7.5
WC67Y-160/4000 1600 4000 3000 320 180 450 11
WC67Y-160/6000 1600 6000 4100 320 180 450 11
WC67Y-200/3200 2000 3200 2450 320 200 470 11
WC67Y-200/4000 2000 4000 3000 320 200 470 15
WC67Y-200/6000 2000 6000 4500 320 200 470 15
WC67Y-250/3200 2500 3200 2450 400 250 540 15
WC67Y-250/4000 2500 4000 3000 400 250 540 15
WC67Y-250/6000 2500 6000 4600 400 250 540 15
WC67Y-300/4000 3000 4000 3000 400 250 560 18.5
WC67Y-400/4000 4000 4000 3100 400 250 560 18.5
WC67Y-400/6000 4000 6000 4500 400 250 560 22
WC67Y-500/4000 5000 4000 3100 500 250 600 30
WC67Y-500/6000 5000 6000 4500 500 250 600 30
WC67Y-600/8000 6000 8000 4500 500 300 650 45
WC67Y-800/6000 8000 6000 4500 500 300 650 55
WC67Y-1200/6000 12000 6000 4500 500 300 650 75

Due to the continuous improvement of the product, if there is any inconsistency between the sample technical data and the actual product data, the technical parameter agreement of both parties should be followed without further notice!

Purchase the company's machine tools, you can enjoy 1-year warranty and lifetime maintenance. In Jiangsu, Zhejiang and Shanghai regions, we will rush to the scene within 24 hours after receiving the call from customers, and 48 hours in remote areas. Customer satisfaction is our service tenet! Welcome to inquire.



Main configuration:

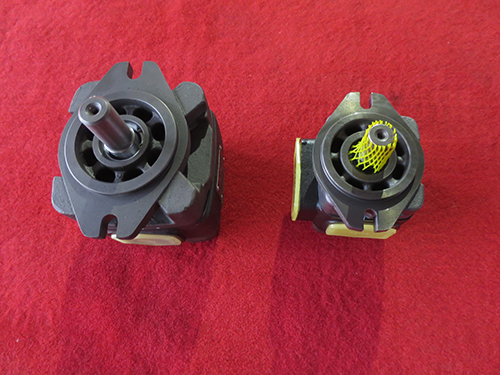

● Gear Pump: American Technology Hytec



products

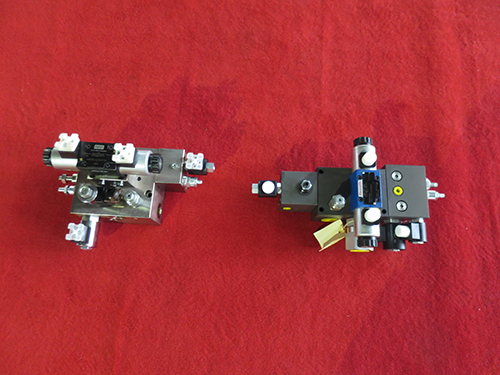

● Valve group: Wuxi Haizhuoke valve group



products

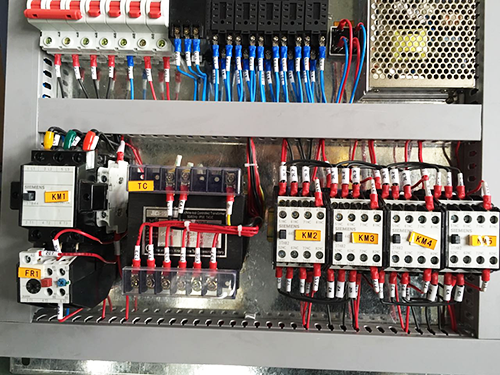

● Electrical appliances: Siemens



products

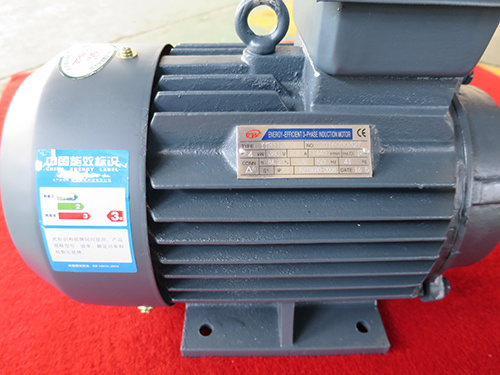

● Motor: Nantong Hengli



products

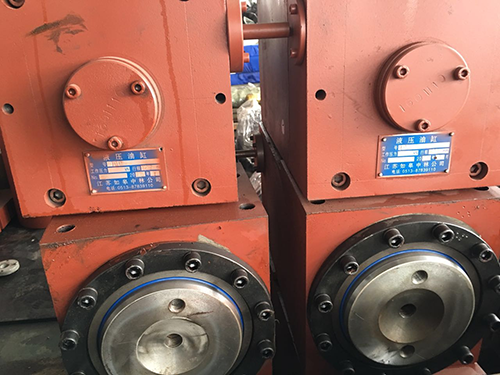

● Main cylinder: produced by Zhonglin Company



products

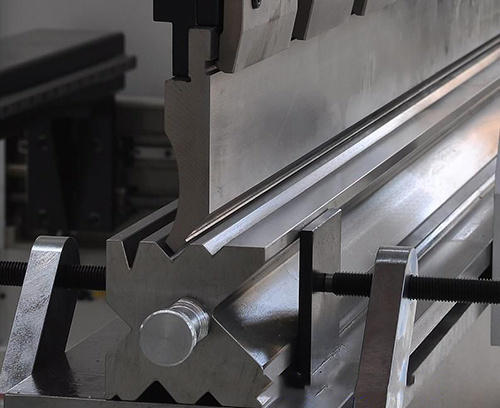

● Mould: Anhui Union Company



products

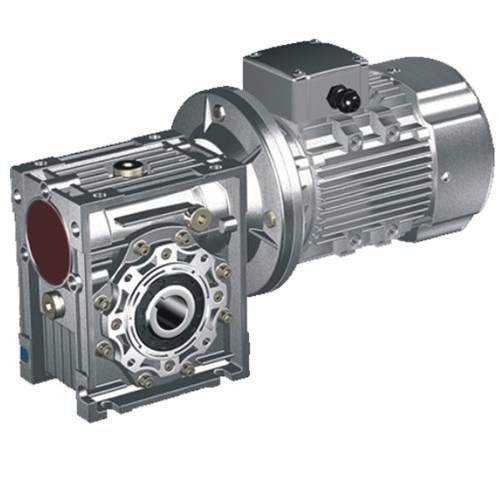

● Reducer: Four Seas



products

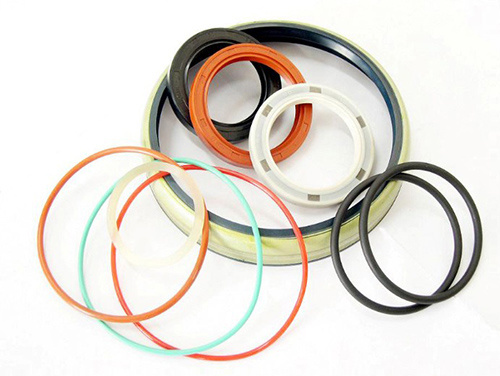

● Seal: Imported seal



products



● Ferrule connector: Imported JS ferrule connector from Germany



products

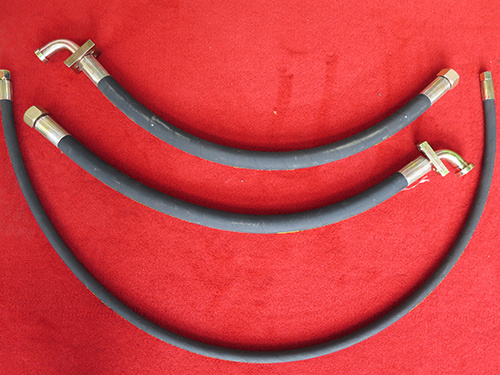

● Tubing: high precision tube



products



● Guardrail

● Optional configuration: quick clip



products
