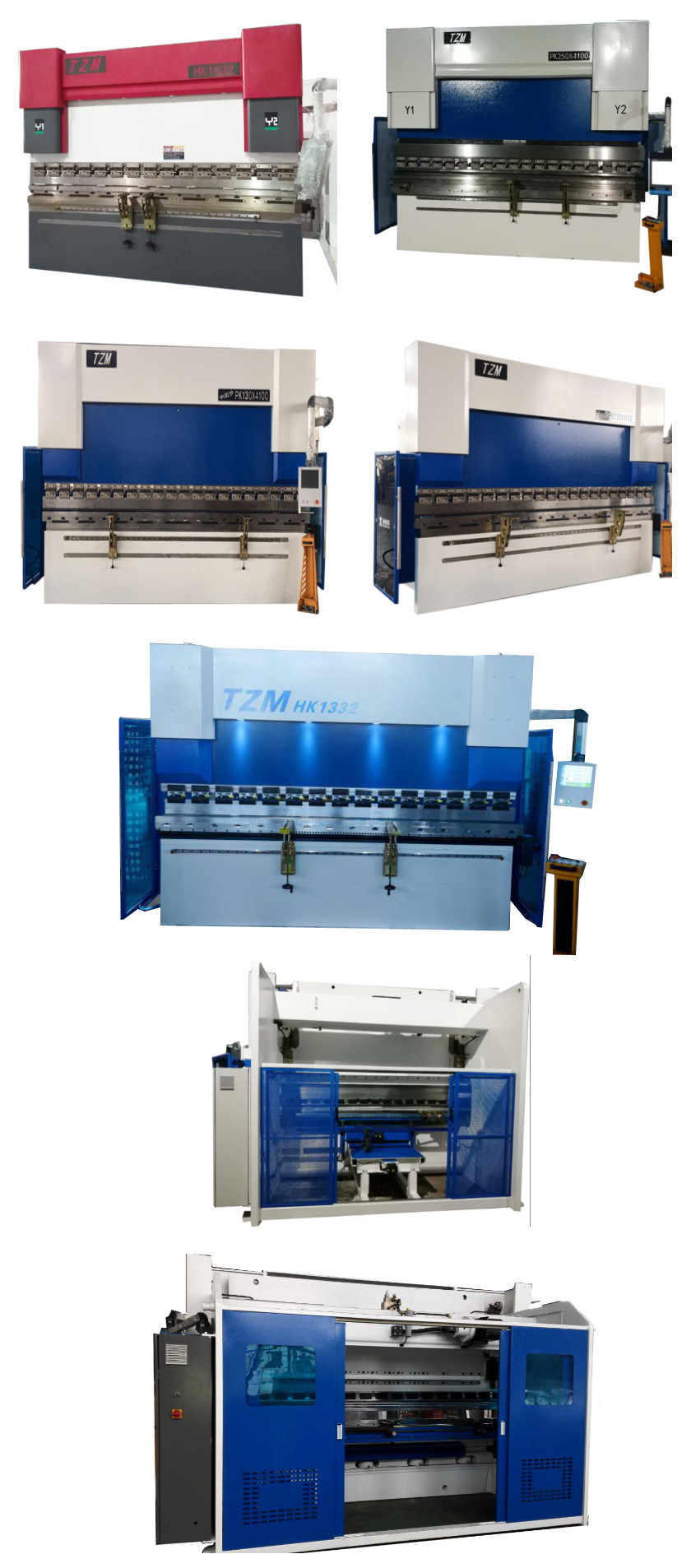

TZM series electro-hydraulic servo bending machine

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Features:

Streamlined design, high-speed, high-precision, high-rigidity CNC sheet metal bending machine.

Electro-hydraulic servo system, fully closed-loop control slider synchronization.

Throat deformation compensation mechanism to ensure bending depth and accuracy.

The back gauge is driven by a digital AC servo motor

Precision ball screw drive, linear guide rail.



Product parameters

Specification model Nominal pressure Working table length Distance between columns Throat depth Slider stroke Maximum opening height main motor power

kn

mm

mm

mm

mm

mm

kw

TZM-63/2500 630 2500 2000 250 100 370 5.5
TZM-63/3200 630 3200 2500 250 100 370 5.5
TZM-80/3200 800 3200 2500 250 120 380 5.5
TZM-100/3200 1000 3200 2500 320 120 400 5.5
TZM-100/4000 1000 4000 3000 320 120 400 7.5
TZM-125/3200 1250 3200 2500 320 120 400 7.5
TZM-125/4000 1250 4000 3000 320 120 400 7.5
TZM-160/3200 1600 3200 2500 320 180 450 7.5
TZM-160/4000 1600 4000 3000 320 180 450 11
TZM-160/6000 1600 6000 4100 320 180 450 11
TZM-200/3200 2000 3200 2450 320 200 470 11
TZM-200/4000 2000 4000 3000 320 200 470 15
TZM-200/6000 2000 6000 4500 320 200 470 15
TZM-250/3200 2500 3200 2450 400 250 540 15
TZM-250/4000 2500 4000 3000 400 250 540 15
TZM-250/6000 2500 6000 4600 400 250 540 15
TZM-300/4000 3000 4000 3000 400 250 560 18.5
TZM-400/4000 4000 4000 3100 400 250 560 18.5
TZM-400/6000 4000 6000 4500 400 250 560 22
TZM-500/4000 5000 4000 3100 500 250 600 30
TZM-500/6000 5000 6000 4500 500 250 600 30
TZM-600/8000 6000 8000 4500 500 300 650 45
TZM-800/6000 8000 6000 4500 500 300 650 55
TZM-1200/6000 12000 6000 4500 500 300 650 75

Due to the continuous improvement of the product, if there is any inconsistency between the sample technical data and the actual product data, the technical parameter agreement of both parties should be followed without further notice!

Purchase the company's machine tools, you can enjoy 1-year warranty and lifetime maintenance. In Jiangsu, Zhejiang and Shanghai regions, we will rush to the scene within 24 hours after receiving the call from customers, and 48 hours in remote areas. Customer satisfaction is our service tenet! Welcome to inquire.



productsproductsproducts



products

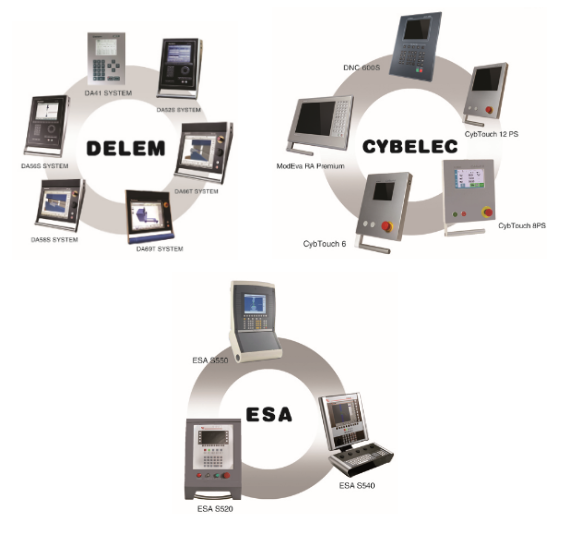

System options:
