Hydraulic Swing Shear Product Features and Performance

　　1. Rectangular lower blade, can use four cutting edges, extending the service life of the blade

　　2. An auxiliary knife seat is set on the workbench for easy micro-adjustment of the blade

　　3. The blade gap adjustment adopts a stepless adjustment mechanism, suitable for the shearing needs of different plate thicknesses and materials

　　4. Adjusting the shearing stroke can improve processing efficiency and realize segmented shearing function

　　5. Automatic shearing counting technology, reduces cumbersome counting work

　　Hydraulic Swing Shear Detail Diagram

　　Hydraulic System

　　1. The integrated hydraulic system is adopted to reduce pipeline installation and ensure high reliability and safety during machine operation

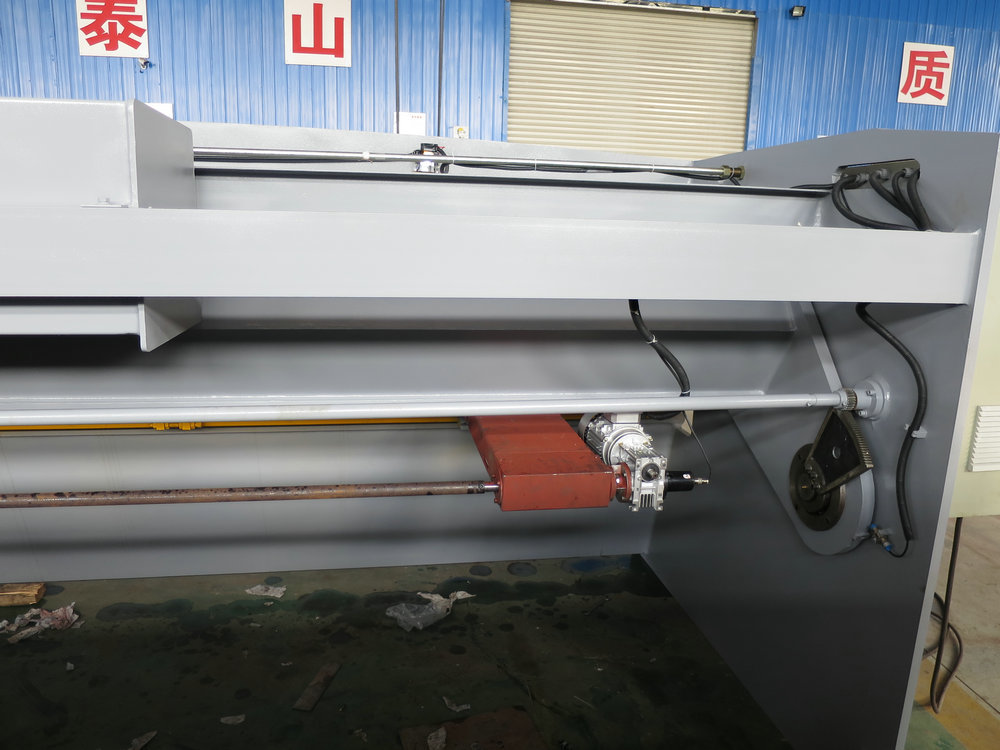

　　2. Pressing mechanism: After several pressing oil cylinders installed on the front support plate of the machine frame are oiled, the pressing head presses down after overcoming the pulling force of the tension spring, pressing the plate. After shearing is completed, it is reset with the pulling force of the tension spring. The pressing force increases with the increase of the thickness of the plate to be sheared. The adjustment of the rear stopper is driven by a servo motor, and after gear reduction, it is driven by a ball screw.

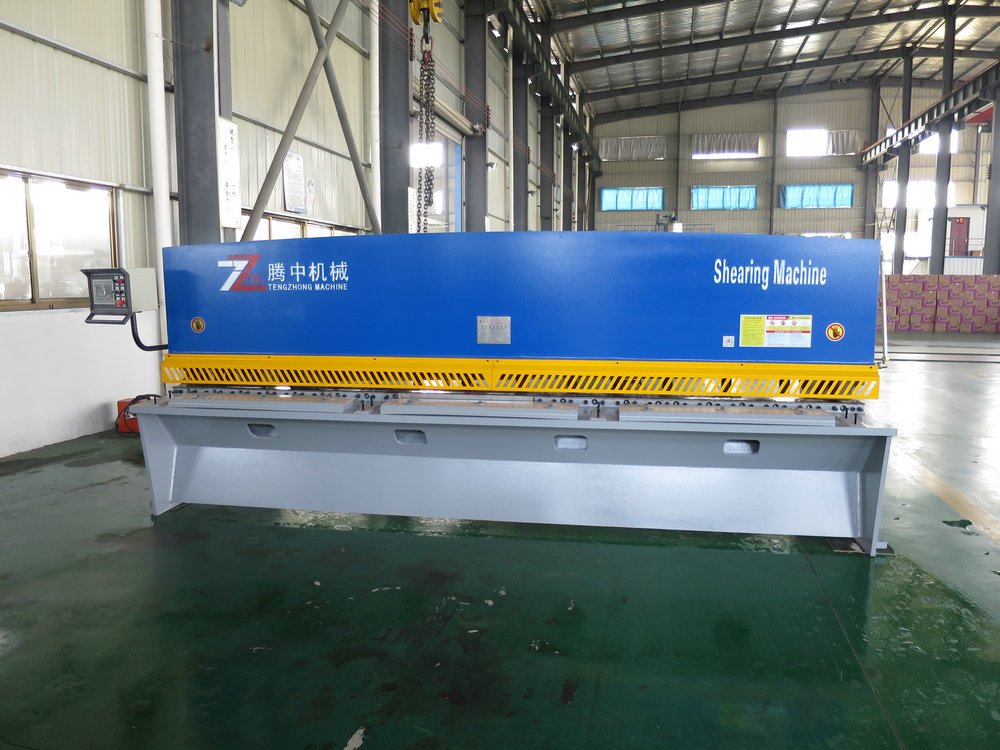

Hydraulic Swing Shear Body

Hydraulic Swing Shear CNC System HT21

Hydraulic Swing Shear Electrical Cabinet

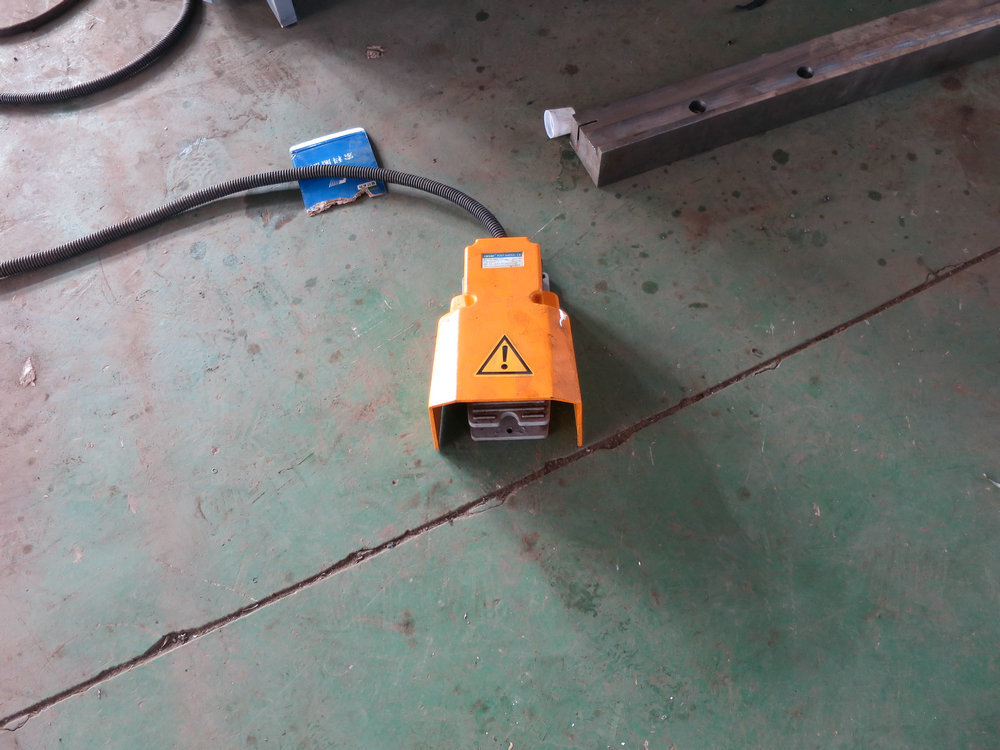

Hydraulic Swing Shear Foot Switch

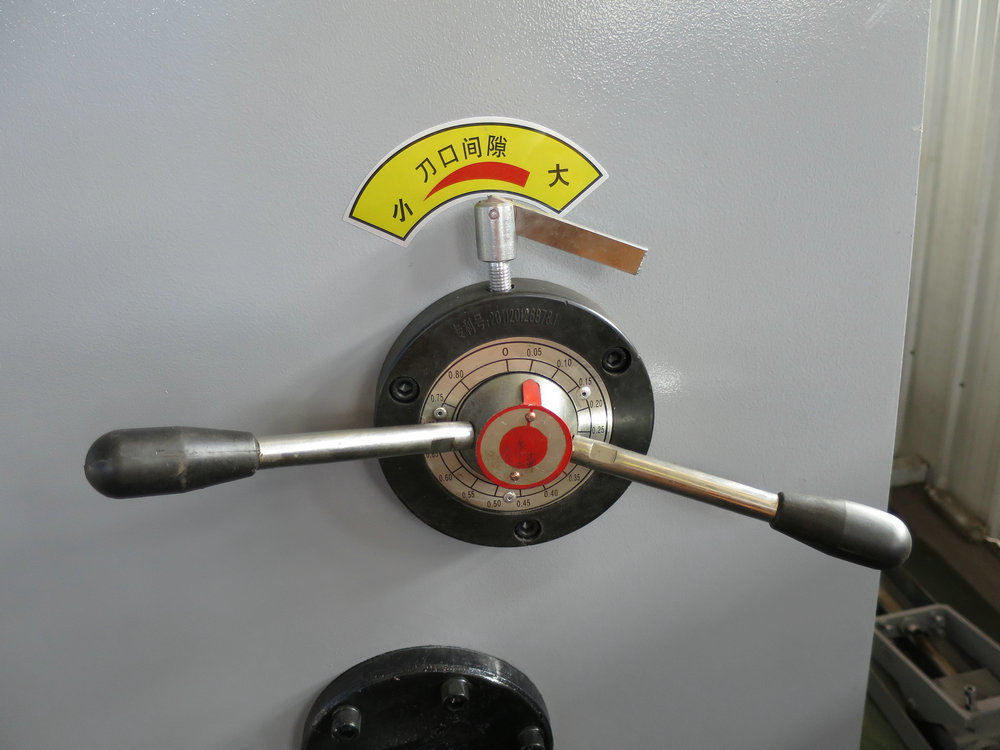

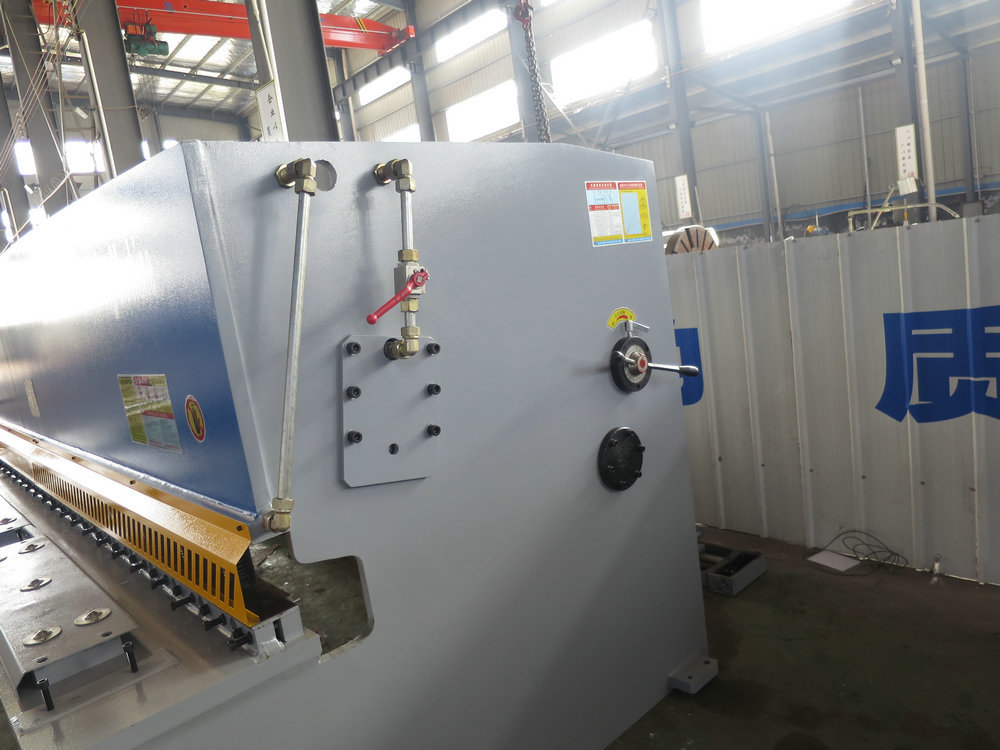

Hydraulic Swing Shear Blade Gap Adjustment Valve
