QC11Y/K series CNC hydraulic guillotine shears

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Features:

The second-generation hydraulic shears are all-steel welded structure, heat treatment eliminates internal stress, and has good rigidity and stability

Adopt advanced integrated hydraulic system with good reliability

Three-point supporting rolling guide is adopted to eliminate the supporting gap and improve the cutting quality

The blade gap can be adjusted by handwheel, quickly, accurately and conveniently

rectangular blade, all four cutting edges can be used, long service life

The shear angle is adjustable to reduce the distortion of the sheet

The upper tool post adopts an inwardly inclined structure, which is convenient for blanking and improves the accuracy of the workpiece

has the function of segmented cutting and the function of light alignment

Motorized rear gear, digital display

Rear support device (optional configuration)



Technical parameter:

Model

Shear thickness(mm)

Can be cut width(mm)

Number of trips(mm-1)

Backgauge stroke(mm)

Shear angle(°)

Height of worktable(mm)

Motor Power(kw)

QC11Y/K-6x2500

6

2500

16~35

20-600

30′- 1°30

800

7.5

QC11Y/K-6x3200

6

3200

14~35

20-600

30′- 1°30

800

7.5

QC11Y/K-6x4000

6

4000

10~30

20-600

30′- 1°30

800

7.5

QC11Y/K-6x5000

6

5000

10~30

20-800

30′- 1°30

900

11

QC11Y/K-6x6000

6

6000

8~25

20-800

30′- 1°30

1000

11

QC11Y/K-8x2500

8

2500

14~30

20-600

30′- 2°

800

11

QC11Y/K-8x3200

8

3200

12~30

20-600

30′- 2°

850

11

QC11Y/K-8x4000

8

4000

10~25

20-800

30′- 2°

900

11

QC11Y/K-8x5000

8

5000

10~25

20-800

30′- 2°

1000

15

QC11Y/K-8x6000

12

6000

8~20

20-800

30′- 2°

1050

15

QC11Y/K-12x2500

12

2500

12~25

20-800

30′- 2°

840

15

QC11Y/K-12x3200

12

3200

12~25

20-800

30′- 2°

900

15

QC11Y/K-12x4000

12

4000

8~20

20-800

30′- 2°

940

15

QC11Y/K-12x5000

12

5000

8~20

20-1000

30′- 2°

1000

22

QC11Y/K-12x6000

12

6000

6~20

20-1000

30′- 2°

1060

30

QC11Y/K-16x2500

16

2500

12~20

20-800

30′-1 °30

840

22

QC11Y/K-16x3200

16

3200

12~20

20-800

30′- 1°30

900

22

QC11Y/K-16x4000

16

4000

8~15

20-800

30′- 1°30

940

22

QC11Y/K-16x5000

16

5000

8~15

20-1000

30′- 1°30

1000

30

QC11Y/K-16x6000

16

6000

6~15

20-1000

30′- 1°30

1100

37

QC11Y/K-20x2500

20

2500

10~20

20-800

30′- 3°

900

30

QC11Y/K-20x3200

20

3200

10~20

20-800

30′- 3°

950

30

QC11Y/K-20x4000

20

4000

8~15

20-800

30′- 3°

1100

30

QC11Y/K-20x5000

20

5000

8~15

20-1000

30′- 3°

1100

37

QC11Y/K-20x6000

20

6000

6~15

20-1000

30′- 3°

1200

37

QC11Y/K-25x2500

25

2500

8~15

20-800

30′- 1°30

900

37

QC11Y/K-25x3200

25

3200

8~15

20-800

30′- 1°30

950

37

QC11Y/K-25x4000

25

4000

6~15

20-1000

30′- 1°30

1100

37

QC11Y/K-32x2500

32

2500

6~15

20-1000

30′- 4°

1000

55

QC11Y/K-32x3200

32

3200

8~15

20-1000

30′- 4°

1100

55

QC11Y/K-40x2500

40

2500

4~10

20-1000

30′- 4°

1200

55

QC11Y/K-40x3200

40

3200

4~10

20-1000

30′- 4°

1200

55

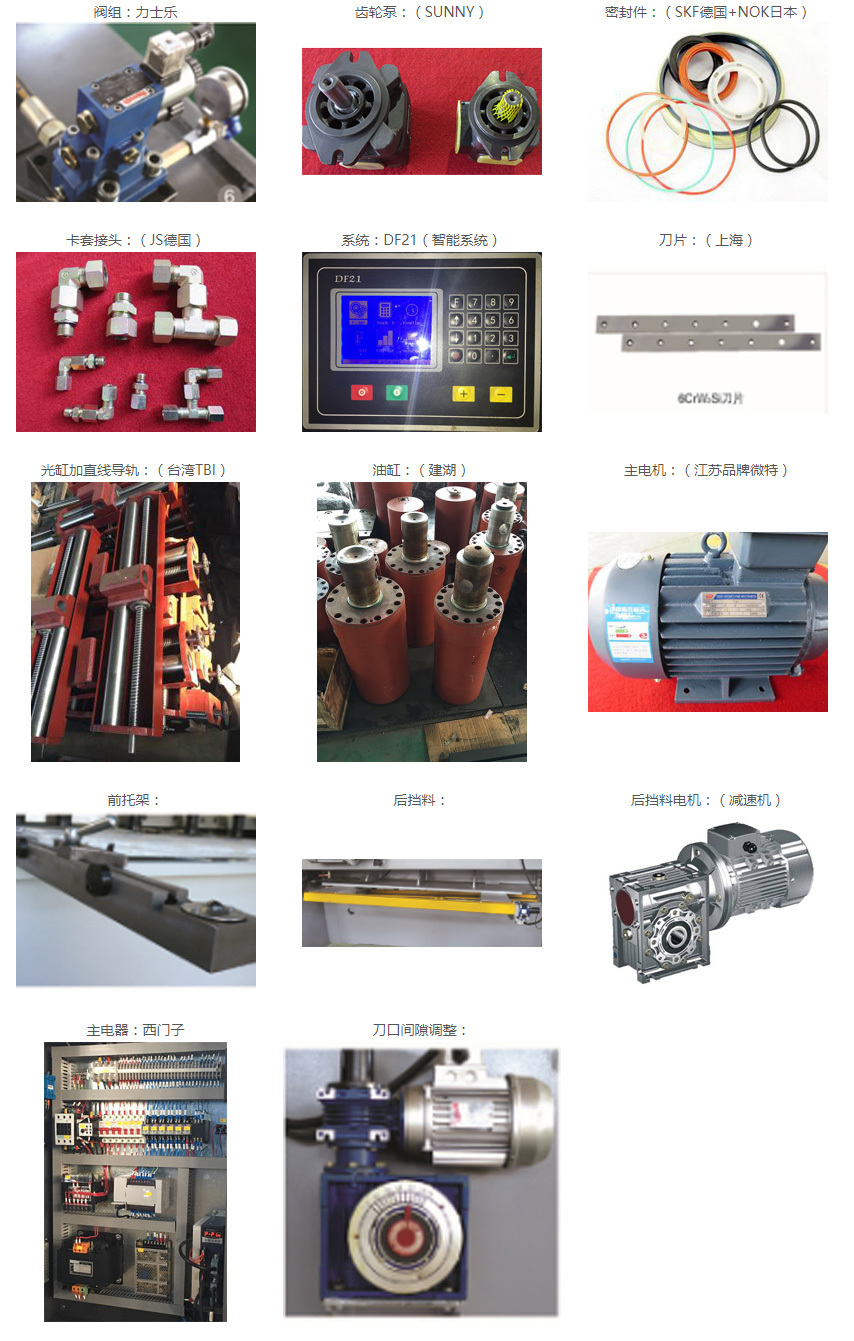

Main machine configuration:



products

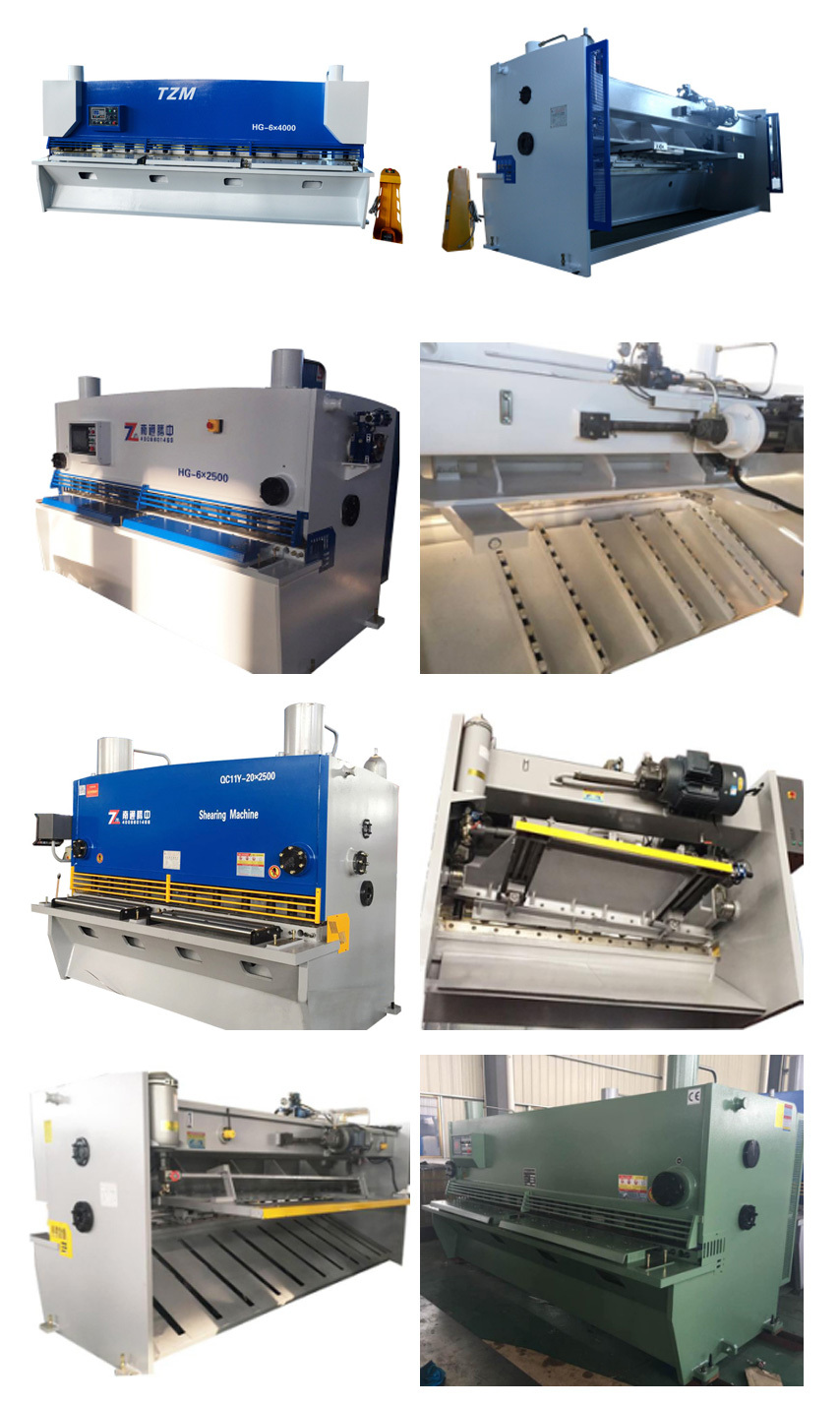

Machine picture:

products

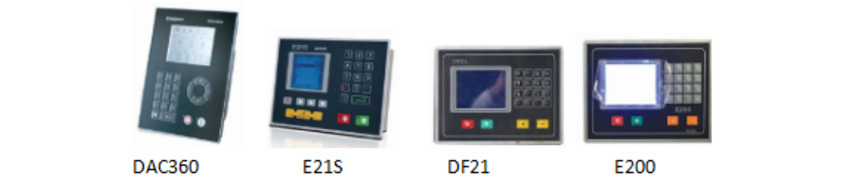

System options:



products
