WC67K Series Torsion Shaft Synchronous Bending Machine

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Performance and characteristics of CNC bending machine:

1. Direct angle programming with angle compensation function.

2. Grating ruler real-time detection feedback correction, full closed loop control, back gauge and slider dead gauge positioning accuracy is ±0.02mm.

3. The upper mold adopts a quick clamping device, and the lower mold adopts a wedge deformation compensation mechanism.

4. With multi-step programming function, it can realize multiple automatic operation, complete multi-step parts one-time processing, and improve production efficiency.

5. According to user needs, the imported hydraulic system with stable performance and compact structure can be selected, and the back gauge can be driven by ball screw and timing belt.



Technical parameter:

Specification model Nominal pressure Working table length Distance between columns Throat depth Slider stroke Maximum opening height Main motor power

kn

mm

mm

mm

mm

mm

kw

WC67K-63/2500 630 2500 2000 250 100 370 5.5
WC67K-63/3200 630 3200 2500 250 100 370 5.5
WC67K-80/3200 800 3200 2500 250 120 380 5.5
WC67K-100/3200 1000 3200 2500 320 120 400 7.5
WC67K-100/4000 1000 4000 3000 320 120 400 7.5
WC67K-125/3200 1250 3200 2500 320 120 400 7.5
WC67K-125/4000 1250 4000 3000 320 120 400 7.5
WC67K-160/3200 1600 3200 2500 320 180 450 11
WC67K-160/4000 1600 4000 3000 320 180 450 11
WC67K-160/6000 1600 6000 4100 320 180 450 11
WC67K-200/3200 2000 3200 2450 320 200 470 15
WC67K-200/4000 2000 4000 3000 320 200 470 15
WC67K-200/6000 2000 6000 4500 320 200 470 15
WC67K-250/3200 2500 3200 2450 400 250 540 15
WC67K-250/4000 2500 4000 3000 400 250 540 15
WC67K-250/6000 2500 6000 4600 400 250 540 18.5
WC67K-300/4000 3000 4000 3000 400 250 560 18.5
WC67K-400/4000 4000 4000 3100 400 250 560 22
WC67K-400/6000 4000 6000 4500 400 250 560 30
WC67K-500/4000 5000 4000 3100 500 250 600 30
WC67K-500/6000 5000 6000 4500 500 250 600 30
WC67K-600/8000 6000 8000 4500 500 300 650 45
WC67K-800/6000 8000 6000 4500 500 300 650 55
WC67K-1200/6000 12000 6000 4500 500 300 650 75

Due to the continuous improvement of the product, if there is any inconsistency between the sample technical data and the actual product data, the technical parameter agreement of both parties should be followed without further notice!



Main configuration:



products

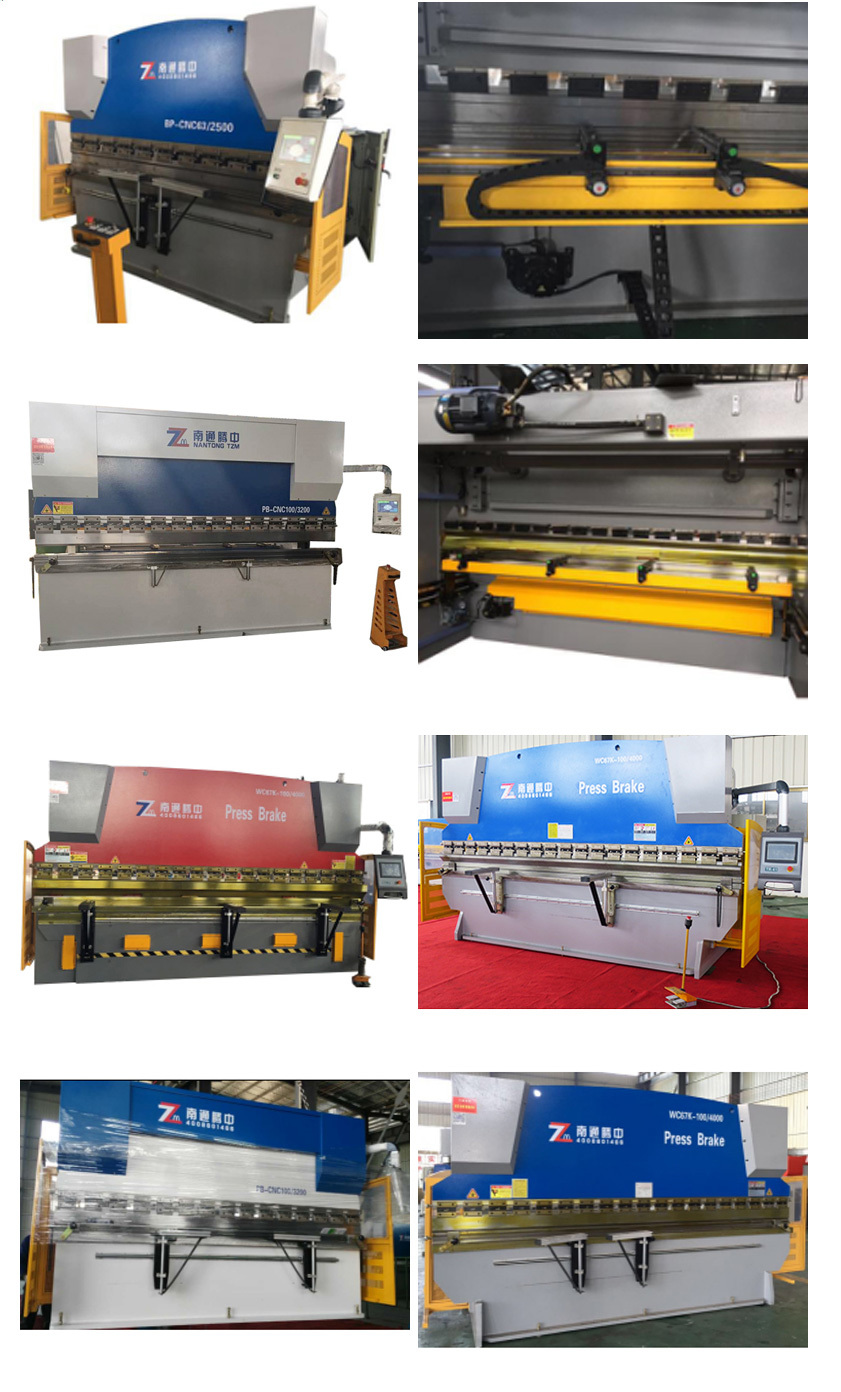

Machine picture:



products
