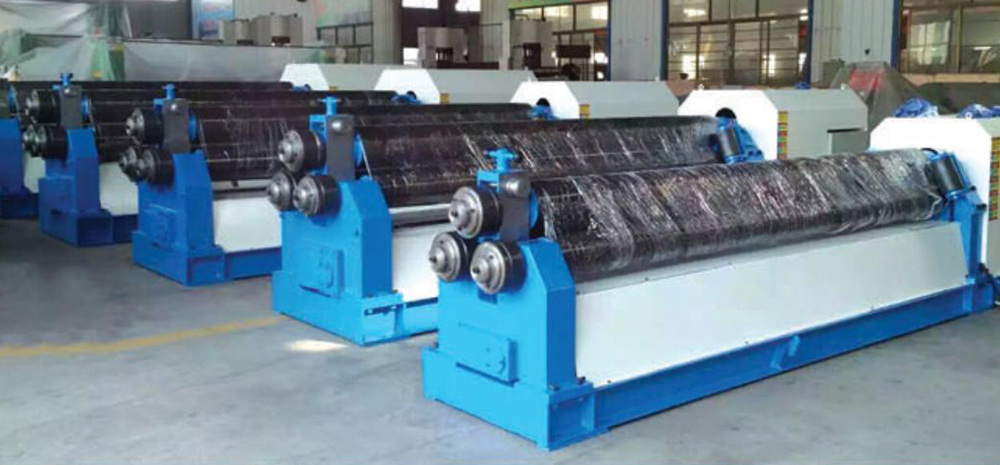

W11-series mechanical three-roller symmetrical plate rolling machine
Overview
This machine is a mechanically symmetrical plate rolling machine, which works by pressing the upper roller and counter-rolling the upper and lower rollers. The output shaft of the main reducer is transmitted to the two lower rollers through a set of gears, and the rotation direction of the roller shaft is changed by the main motor. One upper roller, two lower rollers, lifting screw, worm gear and some auxiliary parts. The lifting movement of the upper roller is realized by moving the lifting screw rod up and down.
This type of plate rolling machine is a classic mechanical plate rolling machine, which is durable, solid, low investment, simple to operate, widely adaptable to various working conditions and convenient maintenance. The disadvantage is that the coil has a remaining head that needs to be rounded or pre-bent with other equipment, high energy consumption, and low efficiency.
The main technical parameters
Specification model |
Maximum coil thickness mm |
Maximum coil width mm |
Sheet yield limit mm |
Minimum roll diameter with full load mm |
Upper roller diameter mm |
Diameter of lower roller mm |
Main motor power Kw |
W11-4×1500 | 4 | 1500 | 245 | 300 | 150 | 140 | 3 |
W11-6×1500 | 6 | 1500 | 245 | 380 | 160 | 140 | 4 |
W11-6×2000 | 6 | 2000 | 245 | 380 | 180 | 160 | 5.5 |
W11-6×3200 | 6 | 3200 | 245 | 380 | 220 | 180 | 7.5 |
W11-8×2000 | 8 | 2000 | 245 | 400 | 185 | 170 | 5.5 |
W11-8×2500 | 8 | 2500 | 245 | 550 | 220 | 180 | 7.5 |
W11-12×2000 | 12 | 2000 | 245 | 550 | 230 | 190 | 7.5 |
W11-12×2500 | 12 | 2500 | 245 | 600 | 260 | 220 | 11 |
W11-12×3000 | 12 | 3000 | 245 | 700 | 280 | 240 | 11 |
W11-16×2000 | 16 | 2000 | 245 | 600 | 260 | 220 | 7.5 |
W11-16×2500 | 16 | 2500 | 245 | 700 | 280 | 240 | 11 |
W11-16×3000 | 16 | 3000 | 245 | 850 | 340 | 260 | 15 |
W11-20×2000 | 20 | 2000 | 245 | 700 | 280 | 240 | 11 |
W11-20×2500 | 20 | 2500 | 245 | 850 | 340 | 260 | 15 |
W11-25×2000 | 25 | 2000 | 245 | 850 | 330 | 270 | 15 |
W11-25×2500 | 25 | 2500 | 245 | 900 | 370 | 270 | 22 |
W11-30×2500 | 30 | 2500 | 245 | 1200 | 410 | 360 | 30 |
W11-30×3000 | 30 | 3000 | 245 | 1200 | 450 | 390 | 37 |
