QC12K/Y series CNC/common hydraulic swing shear
Specializing in the production of "Teng" brand series of hydraulic shearing machine, mechanical shearing machine, hydraulic bending machine
Key words:
QC12K/Y series CNC/common hydraulic swing shear
Product Details

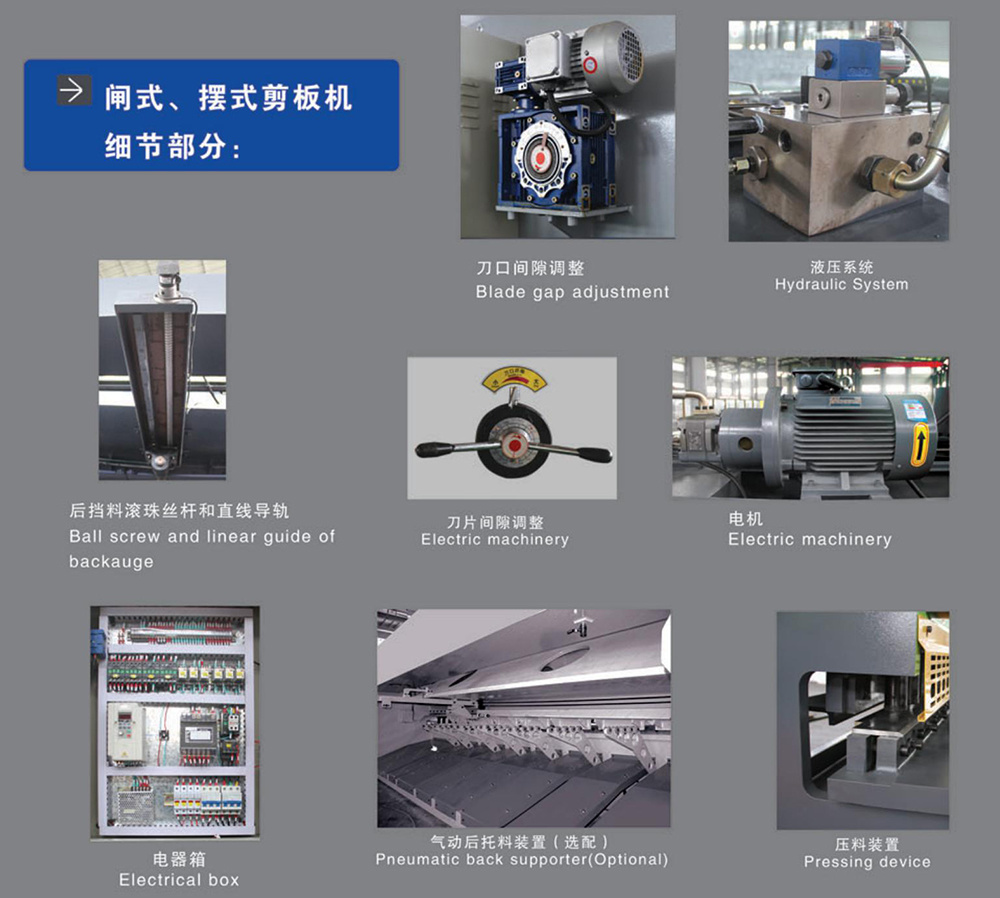

Features
●Uses steel plate welded structure, hydraulic transmission, nitrogen cylinder return.
●Easy operation, reliable performance, beautiful appearance.
●Blade gap adjustment has an indicator, adjustment is quick and easy.
●Equipped with a light alignment lighting device, and can steplessly adjust the stroke of the upper knife holder.
●The work area uses a fence-type personal safety protection device.
●The rear stop size is controlled by a miniature speed-reducing motor, low noise, accurate positioning, and satisfactory results.
QC12Y/QC12K Swing Shear Technical Parameters
Specification/Name | Shearable Plate Thickness mm | Shearable Plate Width mm | Shearing Angle (°) | Number of Strokes/min-1 | Backgauge Range mm | Main Motor Power kw |
QC12Y-4×3200 | 4 | 3200 | 1° 30' | 17~14 | 20~600 | 5.5 |
QC12Y-4×4000 | 4 | 4000 | 1° 30' | 8~10 | 20~600 | 5.5 |
QC12Y-4×5000 | 4 | 5000 | 1° 30' | 7~9 | 20~600 | 5.5 |
QC12Y-4×6000 | 4 | 6000 | 1° 30' | 5~7 | 20~800 | 7.5 |
QC12Y-6×3200 | 6 | 3200 | 1° 30' | 10~12 | 20~600 | 7.5 |
QC12Y-6×4000 | 6 | 4000 | 1° 30' | 8~10 | 20~600 | 7.5 |
QC12Y-6×5000 | 6 | 5000 | 1° 30' | 7~9 | 20~600 | 7.5 |
QC12Y-6×6000 | 6 | 6000 | 1° 30' | 6~7 | 20~800 | 7.5 |
QC12Y-8×3200 | 8 | 3200 | 1° 30' | 8~10 | 20~600 | 7.5 |
QC12Y-8×4000 | 8 | 4000 | 1° 30' | 6~8 | 20~600 | 11 |
QC12Y-8×5000 | 8 | 5000 | 1° 30' | 5~7 | 20~800 | 15 |
QC12Y-8×6000 | 8 | 6000 | 1° 30' | 4~6 | 20~800 | 15 |
QC12Y-10×3200 | 10 | 3200 | 1° 30' | 6~7 | 20~600 | 11 |
QC12Y-10×4000 | 10 | 4000 | 1° 30' | 6~8 | 20~600 | 11 |
QC12Y-12×3200 | 12 | 3200 | 2° | 6~8 | 20~600 | 11 |

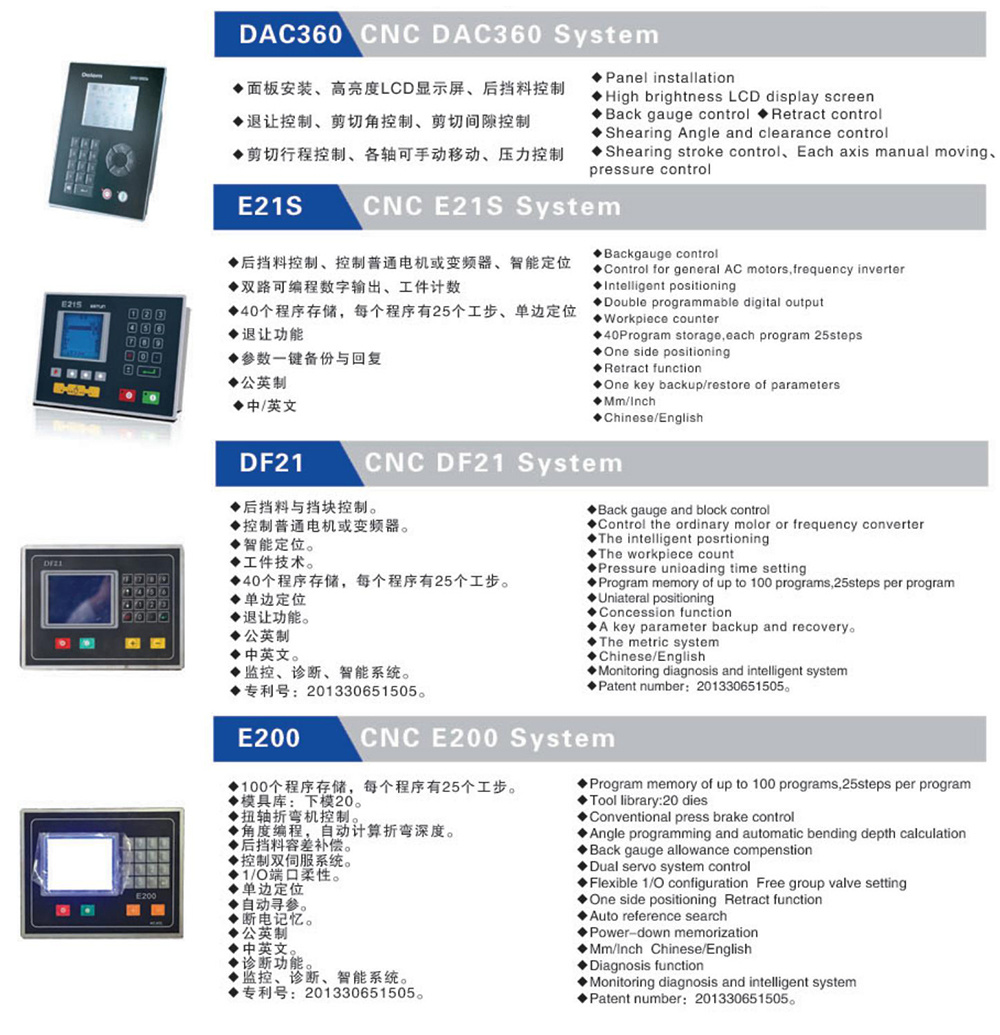

QC11K/Y Series Guillotine/Swing Shear (Optional) CNC System:
