WC67K/Y series CNC (ordinary) hydraulic plate bending machine

Specializing in the production of "Teng" brand series of hydraulic shearing machine, mechanical shearing machine, hydraulic bending machine

Category:Bending machine series

Key words:

immediate consultation

Product Details

　　Features

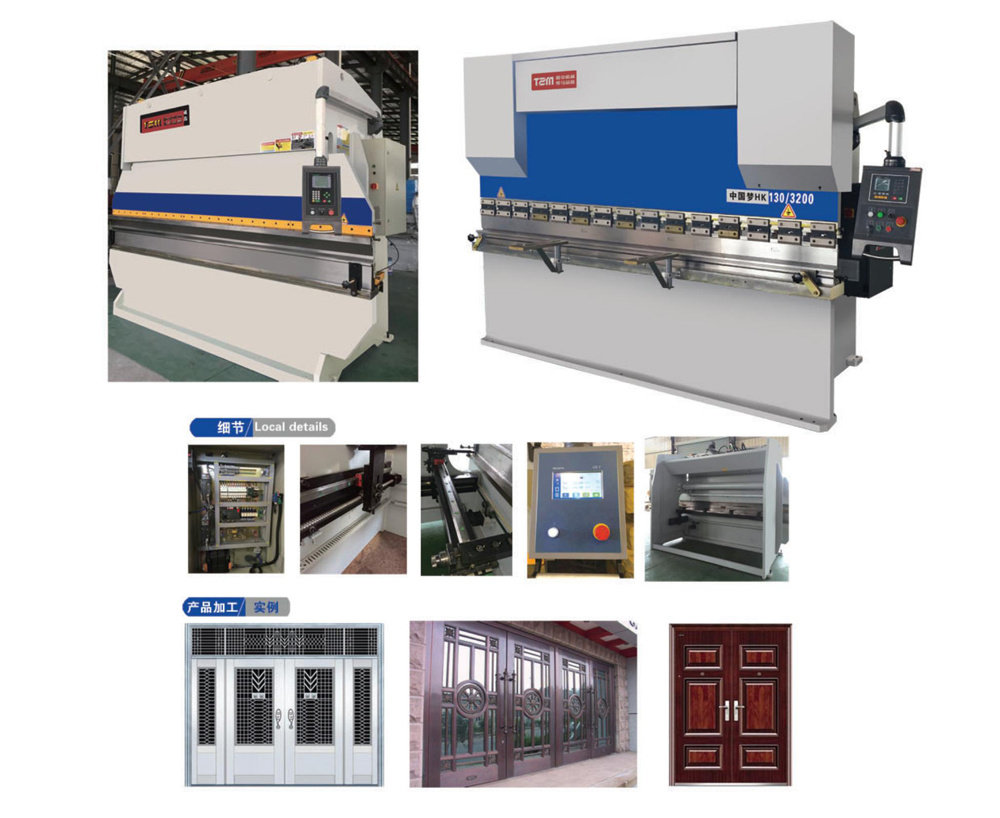

　　●The mainframe adopts the WC67Y series hydraulic plate bending machine structure;

　　●The CNC system uses the DELEM dedicated bending machine CNC system;

　　●The back gauge and stroke adjustment motor use imported AC servo motors;

　　●The back gauge screw adopts imported ball screw + linear guide;

　　●Other models of CNC systems can be selected according to user needs;

Product

　　Bending Machine Technical Parameters

Specification Model	Nominal Pressure kN	Worktable Length mm	Distance between uprights mm	Throat Depth mm	Slide Stroke mm	Main Motor Power kW
WC67Y/K-40/2000	400	2000	1590	100	200	5.5
WC67Y/K-40/2200	400	2200	1590	100	200	5.5
WC67Y/K-40/2500	400	2500	2090	100	200	5.5
WC67Y/K-50/2500	500	2500	1901	120	250	5.5
WC67Y/K-50/3200	500	3200	2600	120	250	5.5
WC67Y/K-63/2500	630	2500	2050	100	250	5.5
WC67Y/K-63/3200	630	3200	2600	100	250	5.5
WC67Y/K-80/3200	800	3200	2600	120	320	7.5
WC67Y/K-80/4000	800	4000	3200	120	320	7.5
WC67Y/K-100/2500	1000	2500	1900	120	320	7.5
WC67Y/K-100/3200	1000	3200	2600	120	320	7.5
WC67Y/K-100/4000	1000	4000	3200	120	320	7.5
WC67Y/K-100/5000	1000	5000	4000	120	320	7.5
WC67Y/K-125/2500	1250	2500	2050	120	320	7.5
WC67Y/K-125/3200	1250	3200	2600	120	320	7.5
WC67Y/K-125/4000	1250	4000	3200	120	320	7.5
WC67Y/K-125/5000	1250	5000	4000	120	320	7.5
WC67Y/K-160/3200	1600	3200	2600	200	320	11
WC67Y/K-160/4000	1600	4000	3200	200	320	11
WC67Y/K-160/5000	1600	5000	4000	200	320	11
WC67Y/K-160/6000	1600	6000	4800	200	320	11
WC67Y/K-200/3200	2000	3200	2600	200	320	15
WC67Y/K-200/4000	2000	4000	3200	200	320	15
WC67Y/K-200/5000	2000	5000	4000	200	320	15
WC67Y/K-200/6000	2000	6000	4800	200	320	15
WC67Y/K-250/3200	2500	3200	2600	200	400	18.5
WC67Y/K-250/4000	2500	4000	3200	250	400	18.5
WC67Y/K-250/5000	2500	5000	4000	250	400	18.5
WC67Y/K-250/6000	2500	6000	4800	250	400	18.5
WC67Y/K-300/3200	3000	3200	2600	250	400	22
WC67Y/K-300/4000	3000	4000	3200	250	400	22
WC67Y/K-300/5000	3000	5000	4000	250	400	22
WC67Y/K-300/6000	3000	6000	4800	250	400	22
WC67Y/K-400/4000	4000	4000	3200	320	400	22
WC67Y/K-400/5000	4000	5000	4000	320	400	22
WC67Y/K-400/6000	4000	6000	4800	320	400	22
WC67Y/K-500/6000	5000	6000	4800	320	400	37
WC67Y/K-600/7000	6000	7000	5600	320	400	37
WC67Y/K-700/7000	7000	7000	5600	320	400	45
WC67Y/K-800/6000	8000	6000	4800	400	500	55
WC67Y/K-1000/6000	10000	6000	4800	400	600	75

　　Due to continuous product improvements, if there are inconsistencies between the sample technical data and the actual product data, the technical parameter agreement between the two parties shall prevail. No further notice will be given.

　　After determining the material thickness and the inner radius of the bend, please refer to the table below

　　1. The table shows the pressure required per meter when bending the material.

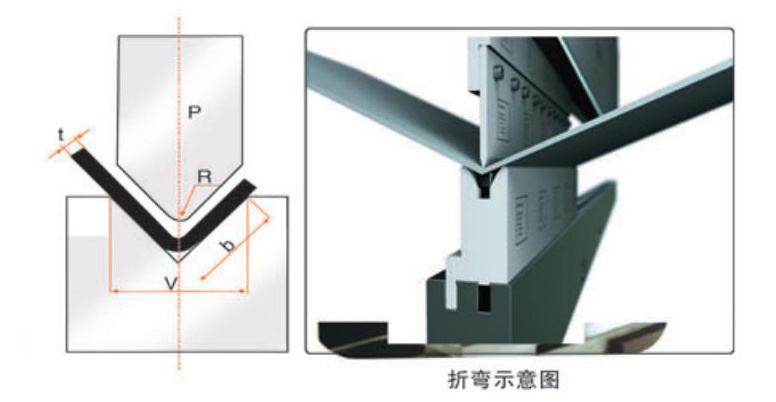

　　2. The V-groove width (V) of the lower die used during bending.

　　3. The shortest side length (b) obtained after bending.

　　Note: The table below shows the V-groove width of the die corresponding to the general plate thickness
